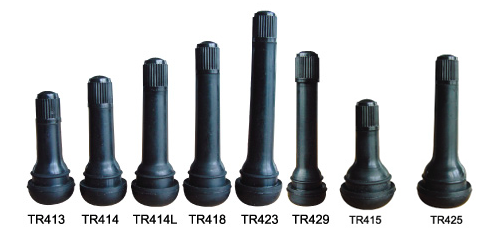

Snap-in Tubeless Tire Valves: TR413, TR414, TR414L, TR418, TR423, TR429, TR415, TR425

Available from Shanghai Baolong Automotive Corporation

●Gernerally used for Passenger Car, Trailers and Light Trucks
●For use to 65PSI/4.5Bar cold inflation pressure maximum
●Recommended maximum rim thickness at rim hole is .156"/4mm
Part No. --ETRTO --Rim Hole -----A(mm) -C(mm) -E(mm) --Cap
TR413 --V2.03.1 --.453"/11.3mm --42.5----15-----32-----TRVC8
TR414 --V2.03.2 --.453"/11.3mm --48.5----15-----38-----TRVC8
TR414L -V2.03.8 --.453"/11.3mm --56.5----15-----46-----TRVC8
TR418 --V2.03.4 --.453"/11.3mm --61.5----15-----51-----TRVC8
TR423 ------------ --.453"/11.3mm --74------15----63.5----TRVC8
TR429 --V2.03.9 --------8.8mm ------59------11---49.5----TRVC8
TR415 --V2.03.3 --.625"/15.7mm --42.5----19.2---32----TRVC8
TR425 ------------ --.625"/15.7mm --61.5----19.2---51----TRVC8
